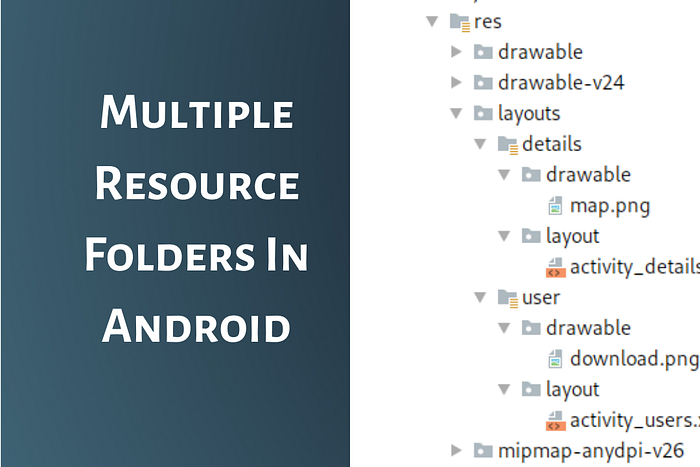

Multiple Resource Folders In Android

3 min readDec 21, 2019

You can manage your resources XML files (layout, drawable,..) better, by grouping them into separate subfolders corresponding to app’s features.

Step to Create Multiple Resource Folders in Android

Create a parent folder that contains all layouts of our project.
Create The Features Folder.
Adding Resource Folder For The Features.
Android Resource Folders Into Android Resources.
Adding / Accessing Resource Files.

Step 1 — Create a parent folder that contains all layouts of our project.

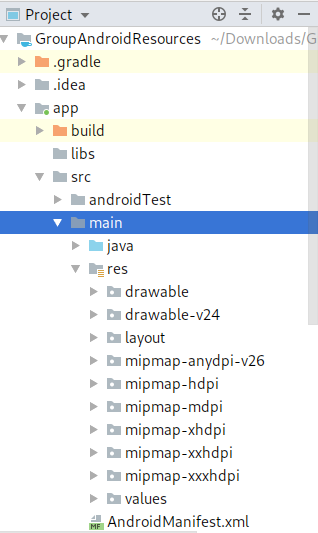

Switch project tree explorer to Project view.

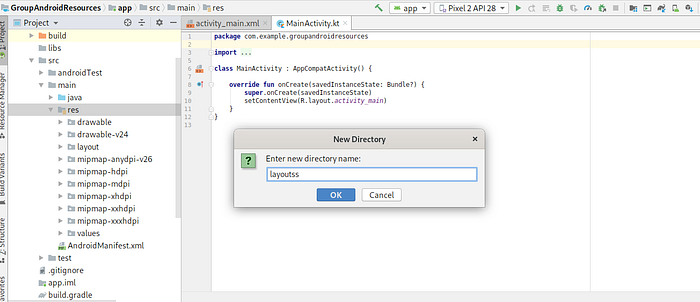

Right click in res,select New → Directory, name it as layouts.

Step 2 — Create The Features Folder

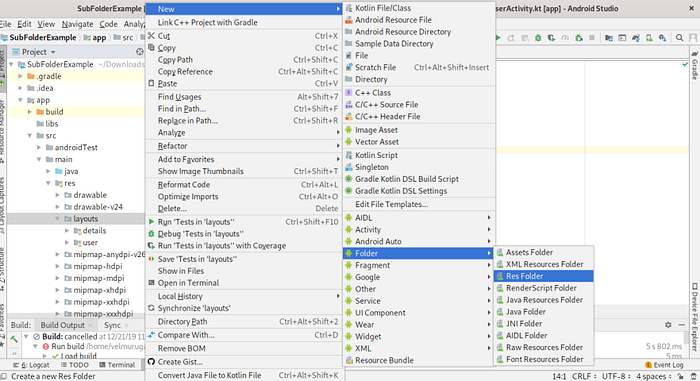

Select folder you created, Then right click and select New → Folder → Res Folder.

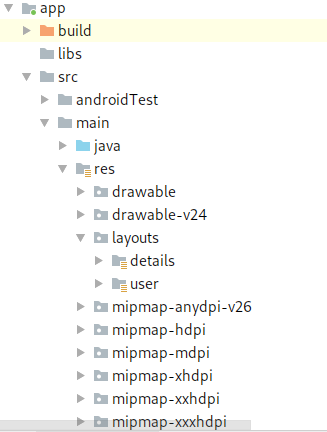

Name the folder based on your feature. In my case, I have named as user, details.

Step 3 — Adding Resource Folder For The Features

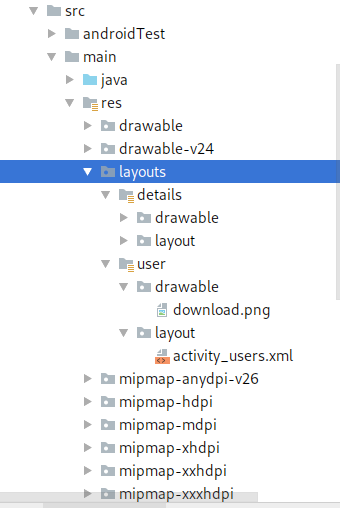

Then, Create resource folders like layout, drawable, menu,anim,etc for the created feature folders. In my example, I have created layout and drawable resource folders.

Step 4 — Android Resource Folders Into Android Resources

Dmytro Danylyk (A Google Developers Experts) says, That we can have multiple res folders within by add resource sets.

Add the below lines of code into your app’s build.gradle file inside android tag.Then, re-sync Gradle and rebuild the project.

android {
    ...
    sourceSets {
        main {
            res.srcDirs = [
'src/main/res',
'src/main/res/layouts/user',
'src/main/res/layouts/details']
        }
    }
}

Step 5 — Adding / Accessing Resource Files

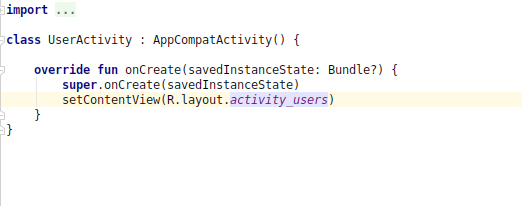

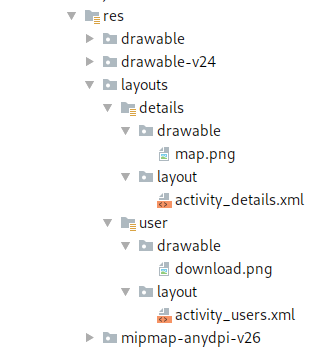

Then, you can add your layout, drawable resources directly into respecting feature folder. Then, To Access the resources you can use standard way of calling like R.layout.activity_user.xml , R.drawable.map.
